Loading...Micro:bit Wind Meter
Bilal Şentürk
Maker
What You'll Need

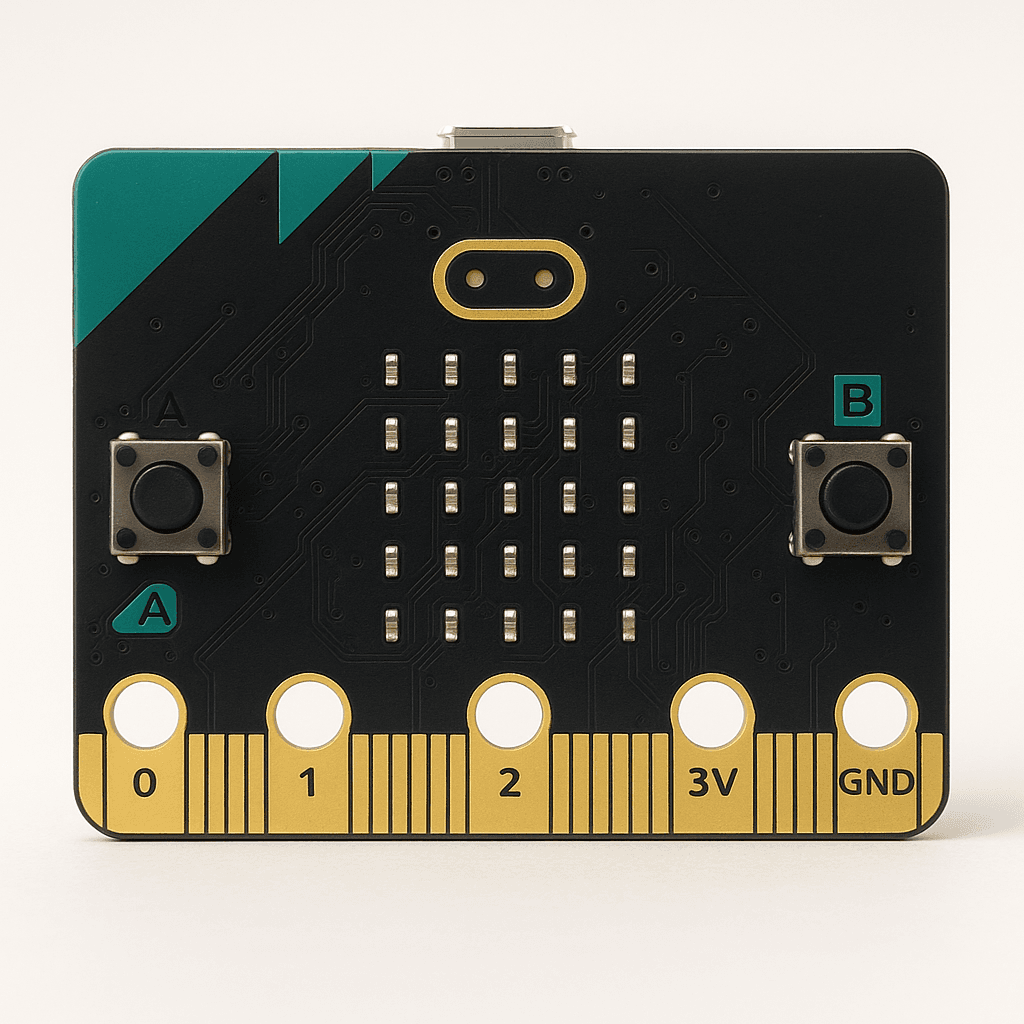

- Micro:bit V2

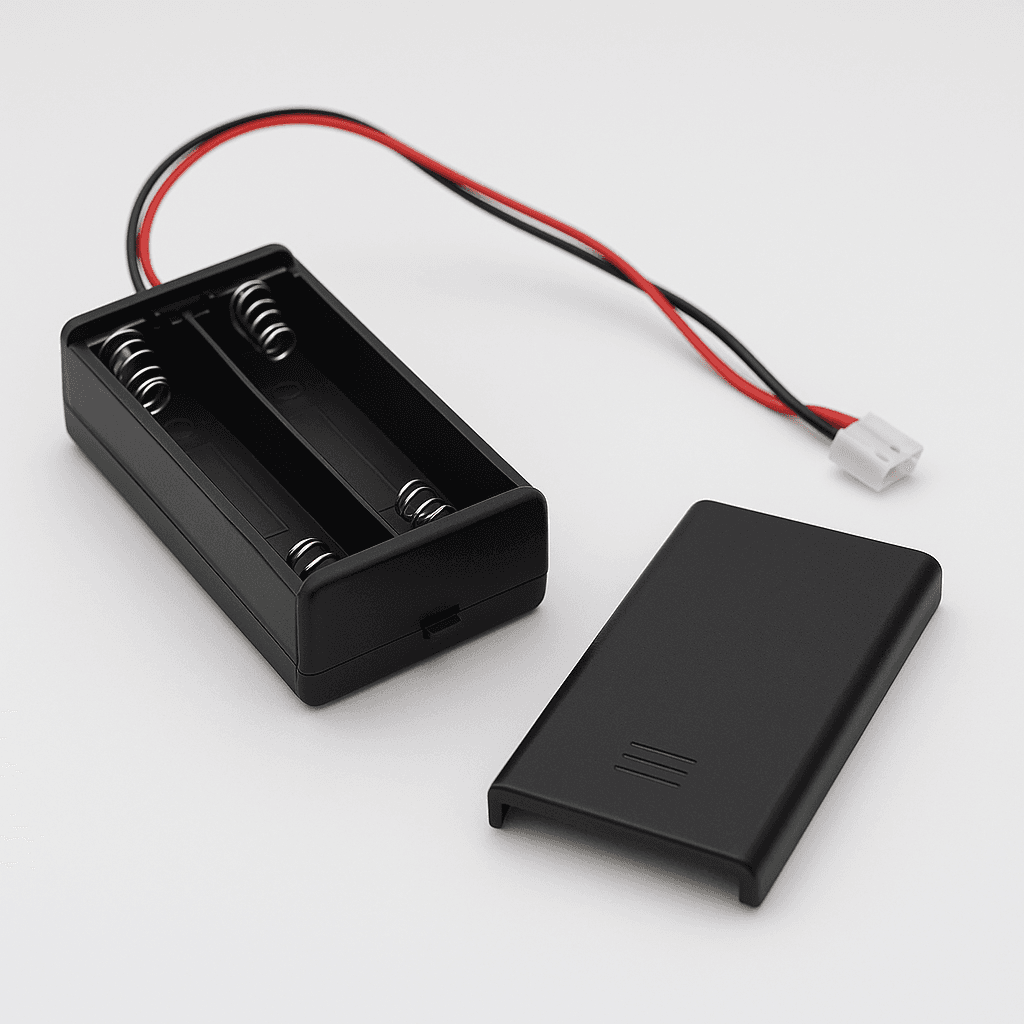

- Battery holder + 2 × AAA alkaline batteries (or USB power)

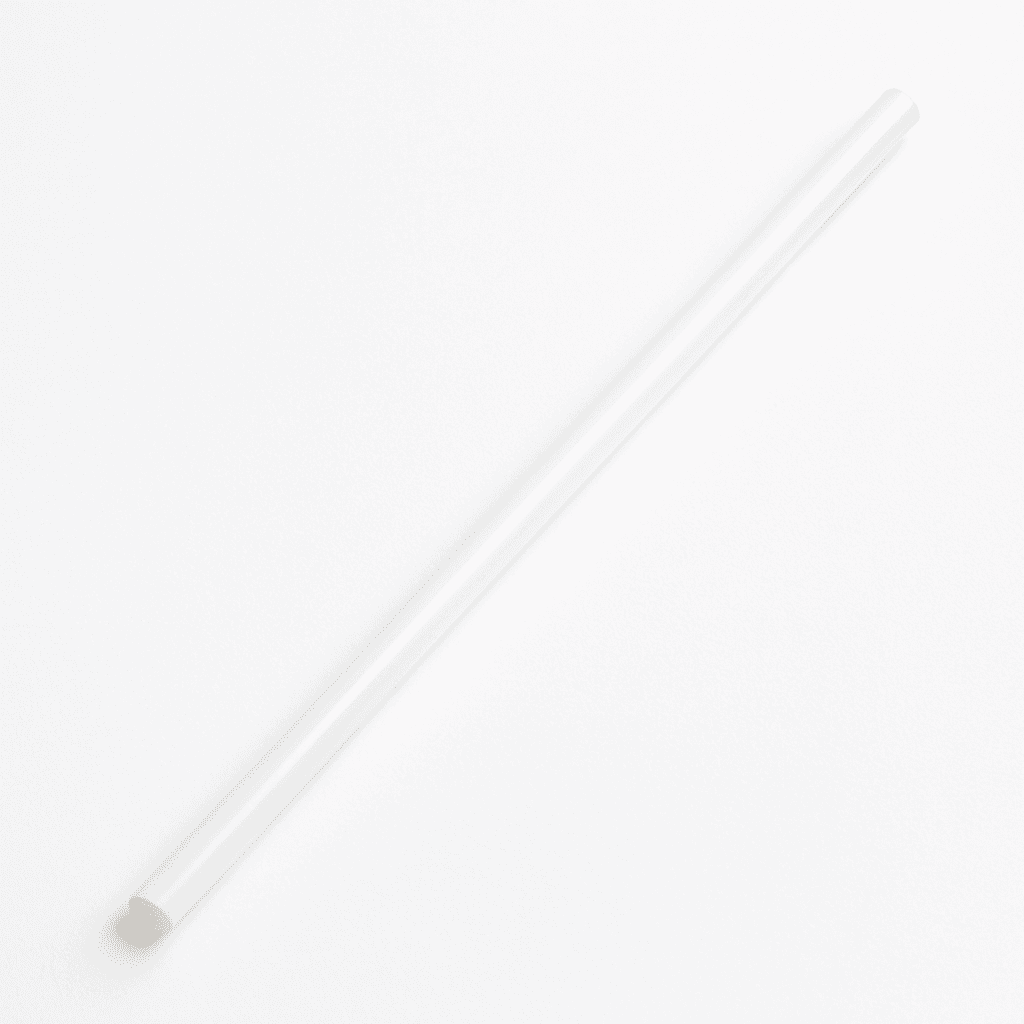

- Plastic straw (15–20 cm) and a large leaf found outdoors 🍃

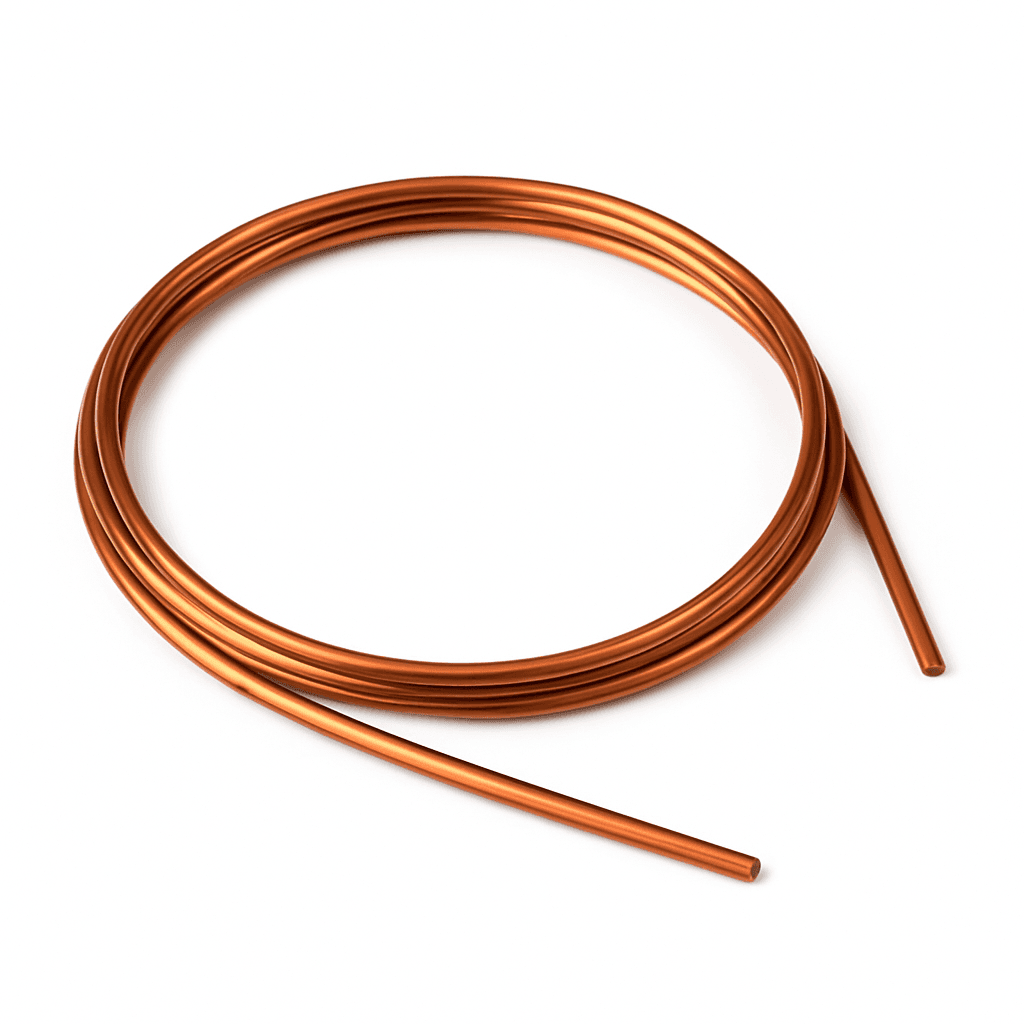

- Copper wire (≈ 30 cm, Ø 1 mm)
Micro:bit Wind Meter
Get all the materials you need for this project in one package!
Includes:
Micro:bit V2
Battery holder + 2 × AAA alkaline batteries (or USB power)
Plastic straw (15–20 cm) and a large leaf found outdoors 🍃
Copper wire (≈ 30 cm, Ø 1 mm)All materials in one package!
0.0/5(0 reviews)Verified reviews
Free Shipping✓
Fast delivery5 days
Return guarantee30 days
In stock
Limited offer!
SSL
Visa/MC
Secure
Let's Make It! Step-by-Step Guide
-

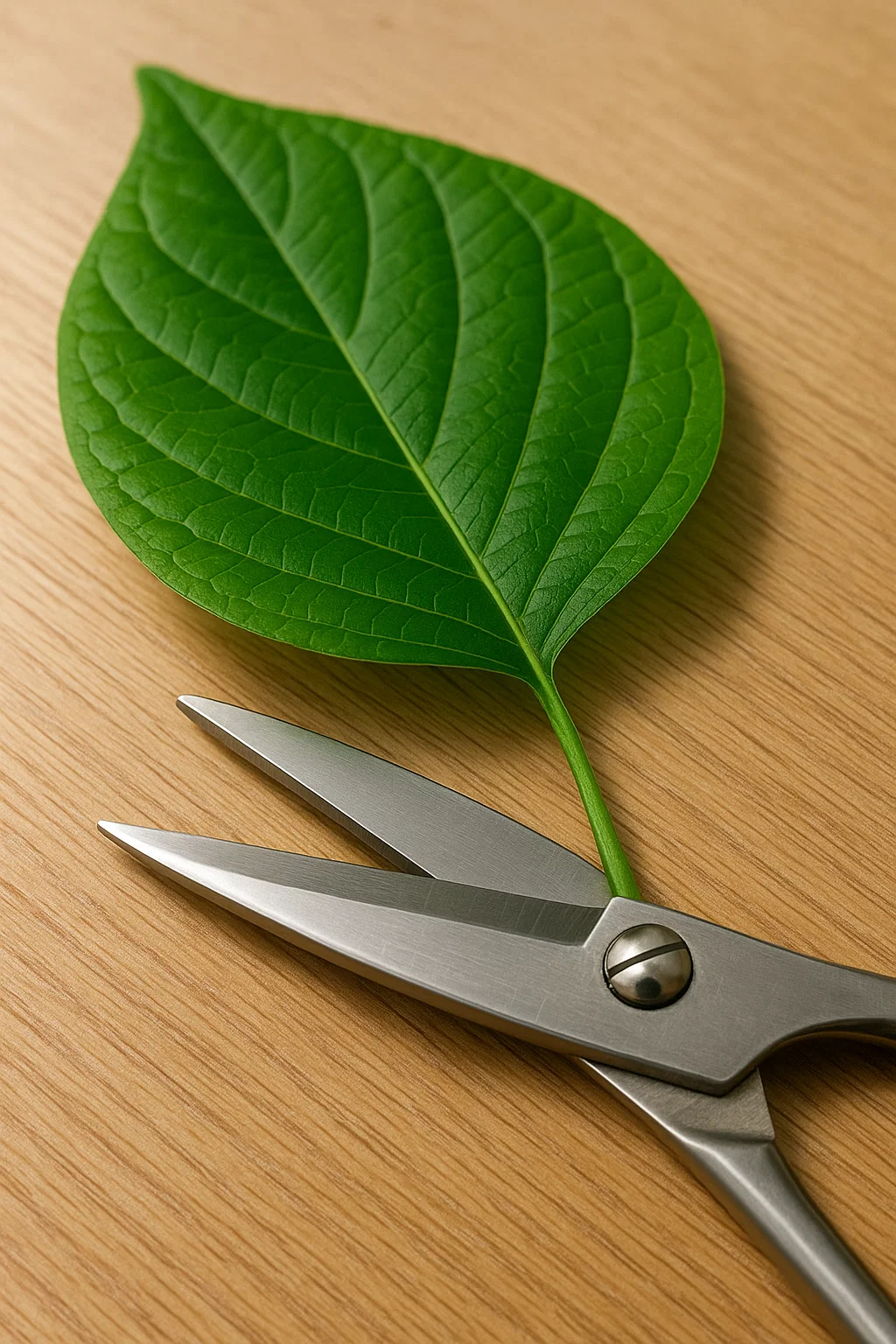

Trim the leaf’s stem to ~2 cm.
-
Glue its stem end into the top of your plastic straw.
The Science Behind It
Wind makes the leaf rustle and vibrate. Those vibrations create sound waves picked up by the Micro:bit’s microphone, which measures amplitude (0–255). We scale that value into 0–5 LED columns, visualizing sound level → wind intensity in real time.
Helpful Tips
- Angle the straw so the leaf “whispers” directly into the mic hole.
- If readings are too low, reduce the straw-mic distance to 1–2 cm.
- Use fresh, stiff leaves (like poplar or sycamore) for best vibration.
- Shield the Mic:bit from rain using a small plastic box or bag.
Try These Variations!
- 1Wireless Alerts: Send a radio message to another Micro:bit or phone when wind > threshold.
- 2I²C Display: Attach an OLED to show dB readings numerically.
- 3Data Logging: Stream readings over USB or Bluetooth to graph wind trends.
- 4Multi-Leaf Array: Mount 2–3 leaves on separate wires to compare gust direction.
